# What is Characteristics of SCWRs – Definition

Characteristics of SCWRs. SCWRs operate at pressures above the critical pressure, properties of water in the reactor change gradually and continuously. Thermal Engineering

## Characteristics of SCWRs

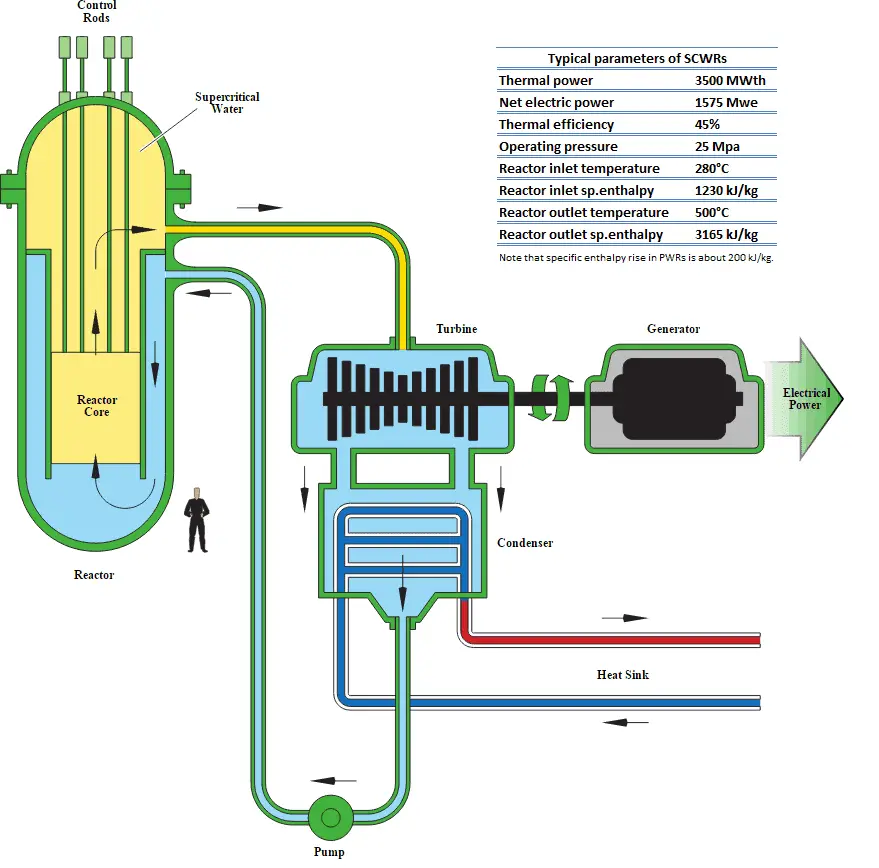

SCWRs operate at pressures above the critical pressure,  properties of water in the reactor change gradually and continuously from those we ordinarily associate with a liquid (high density, small compressibility) to those of a gas (low density, large compressibility) without a phase change. There is no change in the phase of water in the core. On the other hand, physical properties such as density, specific heat, specific enthalpy undergo significant changes, especially in the temperature range of the pseudocritical region (for 25 MPa between 372°C and 392°C). For example,

• the density of supercritical water at the inlet and at the outlet is about 777 kg/m3  (for 25MPa and 280°C) and 90 kg/m3 (for 25MPa and 500°C),
• the specific enthalpy of supercritical water at the inlet and at the outlet is about 1230 kJ/kg (for 25MPa and 280°C) and 3165 kJ/kg (for 25MPa and 500°C)

From a neutronics point of view, the density of water is the most important factor. There is a significant change of neutron spectrum, which changes with the axial coordinate of the core. It is caused by the greater moderation in places with greater density. For this reason, a coupled neutronics – thermal hydraulics calculation is inevitable to obtain neutron flux distribution within the core. In each nuclear reactor, there is a direct proportionality between the neutron flux and the reactor thermal power.

Since the coolant (moderator) undergo significant change in density, the SCWR can also be designed as a fast neutron reactor. This property depends on certain reactor design.

Critical Point of Water

In thermodynamics, a critical point (or critical state) is the end point of a phase equilibrium curve. The phase diagram of water is a pressure-temperature diagram for water that shows how all three phases (solid, liquid, and vapor) may coexist together in thermal equilibrium. Along the vaporization line, the liquid and vapor phases are in equilibrium, along the fusion line, the solid and liquid phases are in equilibrium and along the sublimation line, the solid and vapor phases are in equilibrium. The only point at which all three phases may exist in equilibrium is the triple point. The vaporization line ends at the critical point because there is no distinct change from the liquid phase to the vapor phase above the critical point.

Above the critical point, there is no constant-temperature vaporization process. At the critical point the saturated-liquid and saturated-vapor states are identical. The temperature, pressure, and specific volume at the critical point are called the critical temperature, critical pressure, and critical volume. For water, these parameters are the following:

• Pcr = 22.09 MPa
• Tcr = 374.14 °C (or 647.3 K)
• vcr = 0.003155 m3/kg
• uf = ug = 2014 kJ/kg
• hf = hg = 2084 kJ/kg
• sf = sg =4.406 kJ/kg K

A supercritical phase (e.g. water at a pressure above the critical pressure) does not separate into two phases when it is cooled at constant pressure (along a horizontal line above the critical point in phase diagram). Instead, its properties change gradually and continuously from those we ordinarily associate with a gas (low density, large compressibility) to those of a liquid (high density, small compressibility) without a phase change.

As can be seen from steam tables, as we approach the critical point, the differences in physical properties (such as density and enthalpy) between the liquid and vapor phases become smaller. For example, just below the critical point at the pressure of 21.8 MPa and the temperature of 373°C the specific enthalpy of saturated liquid is 1970 kJ/kg, while the specific enthalpy of saturated vapor is 2230 kJ/kg. The specific heat of vaporization is only 260 kJ/kg. Exactly at the critical point these differences become zero, and at this point the distinction between liquid and vapor disappears. The heat of vaporization also becomes zero at the critical point.

Near the critical point, the physical properties of the liquid and the vapor change dramatically. For example, liquid water under normal conditions has a low thermal expansion coefficient, is nearly incompressible, is an excellent solvent for electrolytes, and has a high dielectric constant. But near the critical point, all these properties change into the exact opposite: water becomes compressible, has a significant thermal expansion coefficient, has a low dielectric constant, is a bad solvent for electrolytes. At pressures greater than the critical pressure the physical properties also undergo a fast transition, but without singularities. With further increase in pressure the transition becomes smoother. This transition region is called pseudocritical region, at a given pressure the temperature where the specific heat has its maximum is called pseudocritical point.

For nearly all familiar materials the critical pressures are much greater than atmospheric pressure, therefore we don’t observe this behavior in everyday life. But in energy engineering, there are many applications for supercritical water. One of ways to increase thermal efficiency of thermodynamic cycles (e.g. Rankine cycle) is to increase the peak temperature and pressure in the boiler. High-pressure steam boilers in thermal power plants regularly run at pressures and temperatures well above the critical point.

In nuclear engineering, the supercritical water reactor is considered a promising advancement for nuclear power plants because of its high thermal efficiency (~45 % vs. ~33 % for current LWRs). This concept of reactor operates at supercritical pressure (i.e. greater than 22.1 MPa) and belongs to Generation IV reactor designs.

Properties of Supercritical Water
A supercritical fluid is a fluid that is at pressures higher than its thermodynamic critical values. At the critical and supercritical pressures a fluid is considered as a single-phase substance in spite of the fact that all thermophysical properties undergo significant changes within the critical and pseudocritical regions.

____________________

Pseudocritical linepseudocritical points. Pseudocritical line consist of pseudocritical points, which are points at a pressure above the critical pressure and at a temperature (Tpc > Tcr) corresponding to the maximum value of the specific heat at this particular pressure.

____________________

At pressures above the critical pressure,  properties of water in the reactor change gradually and continuously from those we ordinarily associate with a liquid (high density, small compressibility) to those of a gas (low density, large compressibility) without a phase change. There is no change in the phase of water in the core. On the other hand, physical properties such as density, specific heat, specific enthalpy undergo significant changes, especially in the temperature range of the pseudocritical region (for 25 MPa between 372°C and 392°C). For example,

• the density of supercritical water at the inlet and at the outlet is about 777 kg/m3  (for 25MPa and 280°C) and 90 kg/m3 (for 25MPa and 500°C),
• the specific enthalpy of supercritical water at the inlet and at the outlet is about 1230 kJ/kg (for 25MPa and 280°C) and 3165 kJ/kg (for 25MPa and 500°C)

Following figures shows the behaviour of thermophysical properties of water near the critical (22.1MPa) and pseudocritical (25MPa) points. Near the critical point these property changes are dramatic. In the vicinity of the pseudocritical point at 25 MPa, these property changes become less significant. At 25 MPa the most significant property changes occur within ±25◦C around pseudocritical point (389.4◦C), this region is known as the pseudocritical region. For convenience, below the pseudocritical point fluid properties are considered to show liquid-like behaviour and above the pseudocritical point they are considered to show gas-like behaviour.

Steam Tables - Supercritical Water
