What is Steam Turbine – Description and Characteristics – Definition

In general, a steam turbine is a rotary heat engine that converts thermal energy contained in the steam to mechanical energy or to electrical energy. Steam Turbine

Steam Turbine

In general, a steam turbine is a rotary heat engine that converts thermal energy contained in the steam to mechanical energy or to electrical energy. In its simplest form, a steam turbine consist of a boiler (steam generator), turbine, condenser, feed pump and a variety of auxiliary devices. Unlike with reciprocating engines, for instance, compression, heating and expansion are continuous and they occur simultaneously. The basic operation of the steam turbine is similar to the gas turbine except that the working fluid is water and steam instead of air or gas.

Since the steam turbine is a rotary heat engine, it is particularly suited to be used to drive an electrical generator. Note that about 90% of all electricity generation in the world is by use of steam turbines. Steam turbine was invented in 1884 by Sir Charles Parsons, whose first model was connected to a dynamo that generated 7.5 kW (10 hp) of electricity. Steam turbine is a common feature of all modern and also future thermal power plants. In fact, also the power production of fusion power plants is based on the use of conventional steam turbines.

See also: Properties of Steam

Steam Turbine
Steam Turbine. Source wikipedia.org License: CC BY-SA 3.0



Advantages and Disadvantages of Steam Turbines
Advantages
  • Since the steam turbine is a rotary heat engine, it is particularly suited to be used to drive an electrical generator.
  • Thermal efficiency of a steam turbine is usually higher than that of a reciprocating engine.
  • Very high power-to-weight ratio, compared to reciprocating engines.
  • Fewer moving parts than reciprocating engines.
  • Steam turbines are suitable for large thermal power plants. They are made in a variety of sizes up to 1.5 GW (2,000,000 hp) turbines used to generate electricity.
  • In general, steam contains high amount of enthalpy (espacially in the form of heat of vaporization). This implies lower mass flow rates compared to gas turbines.
  • In general, turbine moves in one direction only, with far less vibration than a reciprocating engine.
  • Steam turbines have greater reliability, particularly in applications where sustained high power output is required.

Disadvantages

Although approximately 90% of all electricity generation in the world is by use of steam turbines, they have also some disadvantages.

  • Relatively high overnight cost.
  • Steam turbines are less efficient than reciprocating engines at part load operation.
  • They have longer startup than gas turbines and surely than reciprocating engines.
  • Less responsive to changes in power demand compared with gas turbines and with reciprocating engines.

How does a steam turbine work?

Rateau Turbine - pressure compounding
Rateau Turbine – pressure compounding

The thermal energy contained in the steam is converted to the mechanical energy by expansion through the turbine. The expansion takes place through a series of fixed blades (nozzles), that orient the steam flow into high speed jets. These jets contain significant kinetic energy, which is converted into shaft rotation by the bucket-like shaped rotor blades, as the steam jet changes direction (see: Law of conversation of momentum). The steam jet, in moving over the curved surface of the blade, exerts a pressure on the blade owing to its centrifugal force. Each row of fixed nozzles and moving blades is called a stage. The blades rotate on the turbine rotor and the fixed blades are concentrically arranged within the circular turbine casing.

In all turbines the rotating blade velocity is proportional to the steam velocity passing over the blade. If the steam is expanded only in a single stage from the boiler pressure to the exhaust pressure, its velocity must be extremely high. But the typical main turbine in nuclear power plants, in which steam expands from pressures about 6 MPa to pressures about 0.008 MPa, operates at speeds about 3,000 RPM for 50 Hz systems for 2-pole generator.(or 1500RPM for 4-pole generator), and 1800 RPM for 60 Hz systems for 4-pole generator (or 3600 RPM for 2-pole generator). A single-blade ring would require very large blades and approximately 30 000 RPM, which is too high for practical purposes.

Therefore most of nuclear power plants operates a single-shaft turbine-generator that consists of one multi-stage HP turbine and three parallel multi-stage LP turbines, a main generator and an exciter.  HP Turbine is usually double-flow reaction turbine with about 10 stages with shrouded blades and produces about 30-40% of the gross power output of the power plant unit. LP turbines are usually double-flow reaction turbines with about 5-8 stages (with shrouded blades and with free-standing blades of last 3 stages). LP turbines produce approximately 60-70% of the gross power output of the power plant unit. Each turbine rotor is mounted on two bearings, i.e. there are double bearings between each turbine module.

See also: HP Turbine

See also: LP Turbine

Rankine Cycle - Ts diagram
Rankine cycle – Ts diagram

In these turbines the high-pressure stage receives steam (this steam is nearly saturated steam – x = 0.995 – point C at the figure; 6 MPa; 275.6°C) from a steam generator and exhaust it to moisture separator-reheater (point D). The steam must be reheated in order to avoid damages that could be caused to blades of steam turbine by low quality steam. The reheater heats the steam (point D) and then the steam is directed to the low-pressure stage of steam turbine, where expands (point E to F). The exhausted steam then condenses in the condenser and it is at a pressure well below atmospheric (absolute pressure of 0.008 MPa), and is in a partially condensed state (point F), typically of a quality near 90%.

Steam turbine of typical 3000MWth PWR
Schema of a steam turbine of a typical 3000MWth PWR.

Types of Steam Turbines

Steam Turbine - types

Steam turbines may be classified into different categories depending on their construction, working pressures, size and many other parameters. But there are two basic types of steam turbines:

  • impulse turbines
  • reaction turbines.

The main distinction is the manner in which the steam is expanded as it passes through the turbine.

Impulse Turbine and Reaction Turbine

Steam turbine types based on blade geometry and energy conversion process are impulse turbine and reaction turbine.

Steam Turbine - Types of Turbine

Impulse Turbine

Steam TurbineThe impulse turbine is composed of moving blades alternating with fixed nozzles. In the impulse turbine, the steam is expanded in fixed nozzles and remains at constant pressure when passing over the blades. Curtis turbine, Rateau turbine, or Brown-Curtis turbine are impulse type turbines. The original steam turbine, the De Laval, was an impulse turbine having a single-blade wheel.

The entire pressure drop of steam take place in stationary nozzles only. Though the theoretical impulse blades have zero pressure drop in the moving blades, practically, for the flow to take place across the moving blades, there must be a small pressure drop across the moving blades also.

Impulse vs Reaction Turbine - comparison
Impulse vs Reaction Turbine – comparison

In impulse turbines, the steam expands through the nozzle, where most of the pressure potential energy is converted to kinetic energy. The high-velocity steam from fixed nozzles impacts the blades, changes its direction, which in turn applies a force. The resulting impulse drives the blades forward, causing the rotor to turn. The main feature of these turbines is that the pressure drop per single stage can be quite large, allowing for large blades and a smaller number of stages. Except for low-power applications, turbine blades are arranged in multiple stages in series, called compounding, which greatly improves efficiency at low speeds.

Modern steam turbines frequently employ both reaction and impulse in the same unit, typically varying the degree of reaction and impulse from the blade root to its periphery. The rotor blades are usually designed like an impulse blade at the rot and like a reaction blade at the tip.

Turbine Blade - Impulse and Reaction
Impulse-Reaction Blade

Since the Curtis stages reduce significantly the pressure and temperature of the fluid to a moderate level with a high proportion of work per stage. An usual arrangement is to provide on the high pressure side one or more Curtis stages, followed by Rateau or reaction staging. In general, when friction is taken into account reaction stages the reaction stage is found to be the most efficient, followed by Rateau and Curtis in that order. Frictional losses are significant for Curtis stages, since these are proportional to steam velocity squared. The reason that frictional losses are less significant in the reaction stage lies in the fact that the steam expands continuously and therefore flow velocities are lower.


Compounding of Steam Turbines
Compounding of steam turbines is the method in which energy from the steam is extracted in a number of stages rather than a single stage in a turbine. In all turbines the rotating blade velocity is proportional to the steam velocity passing over the blade. If the steam is expanded only in a single stage from the boiler pressure to the exhaust pressure, its velocity must be extremely high.

A compounded steam turbine has multiple stages i.e. it has more than one set of nozzles and rotors, in series, keyed to the shaft or fixed to the casing, so that either the steam pressure or the jet velocity is absorbed by the turbine in number of stages. For example, large HP Turbine used in nuclear power plants can be double-flow reaction turbine with about 10 stages with shrouded blades. Large LP turbines used in nuclear power plants are usually double-flow reaction turbines with about 5-8 stages (with shrouded blades and with free-standing blades of last 3 stages).

In an impulse steam turbine compounding can be achieved in the following three ways:

  • pressure compounding
  • velocity compounding
  • pressure-velocity compounding

Steam Turbine - Types of Turbine

Velocity Compounding
Impulse Turbine - velocity compounding

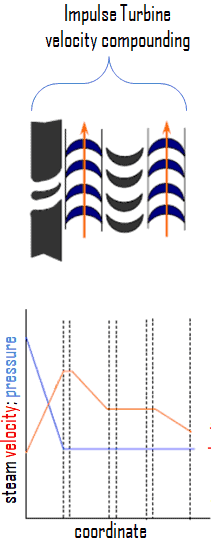

Impulse Turbine – velocity compounding

A velocity-compounded impulse stage consist of a row of fixed nozzles followed by two or more rows of moving blades and fixed blades (without expansion).  This divides the velocity drop across the stage into several smaller drops. In this type, the total pressure drop (expansion) of the steam take place only in the first nozzle ring. This produces very high velocity steam, which flows through multiple stages of fixed and moving blades. At each stage, only a portion of the high velocity is absorbed, the remainder is exhausted on to the next ring of fixed blades. The function of the fixed blades is to redirect the steam (without appreciably altering the velocity) leaving from the first ring of moving blades to the second ring of moving blades. The jet then passes on to the next ring of moving blades, the process repeating itself until practically all the velocity of the jet has been absorbed.

This method of velocity compounding is used to solve the problem of single stage impulse turbine for use of high pressure steam (i.e. required velocity of the turbine), but they are less efficient due to high friction losses.

Pressure Compounding - Rateau Turbine - Zoelly Turbine
Rateau Turbine - pressure compounding
Rateau Turbine – pressure compounding

A pressure-compounded impulse stage is a row of fixed nozzles followed by a row of moving blades, with multiple stages for compounding. In this type, the total pressure drop of the steam does not take place in the first nozzle ring, but is divided up between all the nozzle rings. The effect of absorbing the pressure drop in stages is to reduce the velocity of the steam entering the moving blades. The steam from the boiler is passed through the first nozzle ring in which it is only partially expanded. It then passes over the first moving blade ring where nearly all of its velocity (momentum) is absorbed. From this ring it exhausts into the next nozzle ring and is again partially expanded. This method of pressure compounding is used in Rateau and Zoelly turbines, but such turbines are bigger and bulkier in size.

Pressure-Velocity Compounding - Curtis Turbine
Curtis Turbine - pressure-velocity compounding
Curtis Turbine – pressure-velocity compounding

Impulse stages may be either pressure-compounded, velocity-compounded, or pressure-velocity compounded. The pressure-velocity compounding is a combination of the above two types of compounding.  In fact, a series of velocity-compounded impulse stages is called a pressure-velocity compounded turbine. Each stage consists of rings of fixed and moving blades. Each set of rings of moving blades is separated by a single ring of fixed nozzles. In each stage there is one ring of fixed nozzles and 3-4 rings of moving blades (with fixed blades between them). Each stage acts as a velocity compounded impulse turbine.

The steam coming from the steam generator is passed to the first ring of fixed nozzles, where it gets partially expanded. The pressure partially decreases and the velocity rises correspondingly. It then passes over the 3-4 rings of moving blades (with fixed blades between them) where nearly all of its velocity is absorbed. From the last ring of the stage it exhausts into the next nozzle ring and is again partially expanded.

This has the advantage of allowing a bigger pressure drop in each stage and, consequently, less stages are necessary, resulting in a shorter turbine for a given pressure drop. It may be seen that the pressure is constant during each stage; the turbine is, therefore, an impulse turbine. The method of pressure-velocity compounding is used in the Curtis turbine.

Reaction Turbine – Parsons Turbine

Reaction Turbine - schemaThe reaction turbine is composed of moving blades (nozzles) alternating with fixed nozzles. In the reaction turbine, the steam is expanded in fixed nozzles and also in the moving nozzles. In other words, the steam is continually expanding as it flows over the blades. There is pressure and velocity loss in the moving blades. The moving blades have a converging steam nozzle. Hence when the steam passes over the fixed blades, it expands with decrease in steam pressure and increase in kinetic energy.

In reaction turbines, the steam expands through the fixed nozzle , where the pressure potential energy is converted to kinetic energy. The high-velocity steam from fixed nozzles impacts the blades (nozzles), changes its direction and undergo further expansion. The change in its direction and the steam acceleration applies a force. The resulting impulse drives the blades forward, causing the rotor to turn. Ther is no net change in steam velocity across the stage but with a decrease in both pressure and temperature, reflecting the work performed in the driving of the rotor. In this type of turbine the pressure drops take place in a number of stages, because the pressure drop in a single stage is limited.

The main feature of this type of turbine is that in contrast to the impulse turbine, the pressure drop per stage is lower, so the blades become smaller and the number of stages increases. On the other hand, reaction turbines are usually more efficient, i.e. they have higher “isentropic turbine efficiency”. The reaction turbine was invented by Sir Charles Parsons and is known as the Parsons turbine.

In the case of steam turbines, such as would be used for electricity generation, a reaction turbine would require approximately double the number of blade rows as an impulse turbine, for the same degree of thermal energy conversion. Whilst this makes the reaction turbine much longer and heavier, the overall efficiency of a reaction turbine is slightly higher than the equivalent impulse turbine for the same thermal energy conversion.

Modern steam turbines frequently employ both reaction and impulse in the same unit, typically varying the degree of reaction and impulse from the blade root to its periphery. The rotor blades are usually designed like an impulse blade at the rot and like a reaction blade at the tip.

Turbine Blade - Impulse and Reaction


Pressure Compounding of Reaction Turbine
Compounding of steam turbines is the method in which energy from the steam is extracted in a number of stages rather than a single stage in a turbine. In all turbines the rotating blade velocity is proportional to the steam velocity passing over the blade. If the steam is expanded only in a single stage from the boiler pressure to the exhaust pressure, its velocity must be extremely high.

A compounded steam turbine has multiple stages i.e. it has more than one set of nozzles and blades, in series, keyed to the shaft or fixed to the casing, so that either the steam pressure or the jet velocity is absorbed by the turbine in number of stages. For example, large HP Turbine used in nuclear power plants can be double-flow reaction turbine with about 10 stages with shrouded blades. Large LP turbines used in nuclear power plants are usually double-flow reaction turbines with about 5-8 stages (with shrouded blades and with free-standing blades of last 3 stages).

In a reaction steam turbine compounding can be achieved only in the pressure compounding. In fact, it is not exactly the same as what it was discussed in impulse turbines. Note that, there is steam expansion in both the fixed and moving blades.

Classification of Turbines – steam supply and exhaust conditions

Steam turbines may be classified into different categories depending on their purpose and working pressures. The industrial usage of a turbine influences the initial and final conditions of steam. For any steam turbine to operate, a pressure difference must exist between the steam supply and the exhaust.

This classification includes:


Condensing Steam Turbine
Condenser - LP Heaters - Deaerator

Condensing steam turbines are most commonly found in thermal power plants. In a condensing steam turbine, the maximum amount of energy is extracted from the steam, because there is very high enthalpy difference between the initial (e.g. 6MPa; 275°C; x = 1) and final (e.g. 0.008MPa; 41.5°C; x = 0.9) conditions of steam. This is achieved by passing the exhaust steam into a condenser (called a surface condenser), which condenses the exhaust steam from the low-pressure stages of the main turbine (decreases the temperature and pressure of exhausted steam). The exhausted steam is condensed by passing over tubes containing water from the cooling system.

Rankine Cycle - condenser pressure
Decreasing the turbine exhaust pressure increases the net work per cycle but also decreses the vapor quality of outlet steam.

The goal of maintaining the lowest practical turbine exhaust pressure is a primary reason for including the condenser in a thermal power plant. The condenser provides a vacuum that maximizes the energy extracted from the steam, resulting in a significant increase in net work and thermal efficiency. But also this parameter (condenser pressure) has its engineering limits:

  • Decreasing the turbine exhaust pressure decreases the vapor quality (or dryness fraction). At some point the expansion must be ended to avoid damages that could be caused to blades of steam turbine by low quality steam.
  • Decreasing the turbine exhaust pressure significantly increases the specific volume of exhausted steam, which requires huge blades in last rows of low-pressure stage of the steam turbine.

In a typical condensing steam turbine, the exhausted steam condenses in the condenser and it is at a pressure well below atmospheric (absolute pressure of 0.008 MPa, which corresponds to 41.5°C). This steam is in a partially condensed state (point F), typically of a quality near 90%. Note that, the pressure inside the condenser is also dependent on the ambient atmospheric conditions:

  • air temperature, pressure and humidity in case of cooling into the atmosphere
  • water temperature and the flow rate in case of cooling into a river or sea

An increase in the ambient temperature causes a proportional increase in pressure of exhausted steam (ΔT = 14°C is usually a constant) hence the thermal efficiency of the power conversion system decreases. In other words, the electrical output of a power plant may vary with ambient conditions, while the thermal power remains constant.

The pressure inside condenser is given by the ambient air temperature (i.e. temperature of water in the cooling system) and by steam ejectors or vacuum pumps, which pull the gases (non-condensibles) from the surface condenser and eject them to the atmosphere.

The lowest feasible condenser pressure is the saturation pressure corresponding to the ambient temperature (e.g. absolute pressure of 0.008 MPa, which corresponds to 41.5°C). Note that, there is always a temperature difference between (around ΔT = 14°C) the condenser temperature and the ambient temperature, which originates from finite size and efficiency of condensers.

Back-pressure Steam Turbine
Back-pressure steam turbine - schema
Back-pressure steam turbine – schema

Back-pressure steam turbines or non-condensing turbines are most widely used for process steam applications. Steam is a principle energy source for many industrial processes. The popularity of process steam as an energy source stems from its many advantages, which include:

  • high heat capacity,
  • transportability
  • low toxicity

The process steam can be produced by back-pressure steam turbines, which also generates mechanical work (or electrical energy).  Back-pressure turbines expand the live steam supplied by the boiler to the pressure at which the steam is required for the process. The exhaust pressure is controlled by a regulating valve to suit the needs of the process steam pressure. Back-pressure turbines are commonly found at refineries, district heating units, pulp and paper plants, and desalination facilities where large amounts of low pressure process steam are needed. The electric power generated by the back-pressure turbine is directly proportional to the amount of process steam required.

Reheat Steam Turbine
Rankine cycle - reheat - superheat
Rankine cycle with reheat and superheat the low-pressure stage

Reheat turbines are also used almost exclusively in thermal power plants. All turbines, that have high-pressure turbine and low-pressure turbines use a steam reheat between these stages. Reheat allows to deliver more of the heat at a temperature close to the peak of the cycle (i.e. thermal efficiency increases). This requires the addition of another type of heat exchanger called a reheater.  The use of the reheater involves splitting the turbine, i.e. use of a multistage turbine with a reheater.  It was observed that more than two stages of reheating are unnecessary, since the next stage increases the cycle efficiency only half as much as the preceding stage.

High pressure and low pressure stages of the turbine are usually on the same shaft to drive a common generator, but they have separate cases. With a reheater, the flow is extracted after a partial expansion (point D), run back through the heat exchanger to heat it back up to the peak temperature (point E), and then passed to the low-pressure turbine. The expansion is then completed in the low-pressure turbine from point E to point F.

The steam must be reheated or superheated in order to avoid damages that could be caused to blades of steam turbine by low quality steam. High content of water droplets can cause the rapid impingement and erosion of the blades which occurs when condensed water is blasted onto the blades. To prevent this, condensate drains are installed in the steam piping leading to the turbine. The reheater heats the steam (point D) and then the steam is directed to the low-pressure stage of steam turbine, where expands (point E to F). The exhausted steam is at a pressure well below atmospheric, and, as can be seen from the picture, the steam is in a partially condensed state (point F), typically of a quality near 90%, but it is much higher vapor quality, than that it would be without reheat. Accordingly, superheating also tends to alleviate the problem of low vapor quality at the turbine exhaust.

Wet Steam Turbine - Expansion

Turbine with Steam Extraction
Extraction type turbines are common in all applications. In some applications, when required, steam can be extracted from turbine before steam flowing through the last stage, named extraction turbine. As in back-pressure turbines, extracted steam can be used for many industrial processes or it can be used to improve the efficiency of thermodynamic cycle. The second case is usually known as the heat regeneration.

Almost all large steam turbines use the heat regeneration (i.e. they are extraction turbines), since it reduces the amount of fuel that must be added in the boiler. The reduction in the heat added can be done by transferring heat (partially expanded steam) from certain sections of the steam turbine, which is normally well above the ambient temperature, to the feedwater. Note that, most of energy contained in the steam is in the form of latent heat of vaporization. Extraction flows may be controlled with a valve, or left uncontrolled.

For example, most of nuclear power plants operates a single-shaft turbine-generator that consists of one multi-stage HP turbine with 3 or 4 self-regulating extraction lines and three parallel multi-stage LP turbines with 3 or 4 self-regulating extraction lines.

The high pressure feedwater heaters are usually heated by extraction steam from the high pressure turbine, HP, whereas the low-pressure feedwater heaters are usually heated by extraction steam from the low pressure turbine, LP. Both are usually self-regulating. It means that the greater the flow of feedwater the greater the rate of heat absorption from the steam and the greater the flow of extraction steam.

Steam turbine of typical 3000MWth PWR
Schema of a steam turbine of a typical 3000MWth PWR.

Turbine Blades

The most important turbine elements are the turbine blades. They are the principal elements that convert pressure energy of working fluid into kinetic energy. Turbine blades are of two basic types:

  • moving blades
  • fixed blades

In steam turbines, the steam expands through the fixed blade (nozzle), where the pressure potential energy is converted to kinetic energy. The high-velocity steam from fixed nozzles impacts the moving blades, changes its direction and also expands (in case of reaction type blades). The change in its direction and the steam acceleration (in case of reaction type blades) applies a force. The resulting impulse drives the blades forward, causing the rotor to turn. Steam turbine types based on blade geometry and energy conversion process are:

  • impulse turbine
  • reaction turbine

Modern steam turbines frequently employ both reaction and impulse in the same unit, typically varying the degree of reaction and impulse from the blade root to its periphery. The rotor blades are usually designed like an impulse blade at the rot and like a reaction blade at the tip.

Turbine Blade - Impulse and Reaction

steam_turbine_blade_3The efficiency and reliability of a turbine depend on the proper design of the blades. It is therefore necessary for all engineers involved in the turbines engineering to have an overview of the importance and the basic design aspects of the steam turbine blades. Engineering of turbine blades is a multi-disciplinary task. It involves the thermodynamics, aerodynamics, mechanical and material engineering.

For gas turbines, the turbine blades are often the limiting component.  The highest temperature in the cycle occurs at the end of the combustion process, and it is limited by the maximum temperature that the turbine blades can withstand. As usual, metallurgical considerations (about 1700 K) place an upper limits on thermal efficiency. Therefore turbine blades often use exotic materials like superalloys and many different methods of cooling, such as internal air channels, boundary layer cooling, and thermal barrier coatings. The development of superalloys in the 1940s and new processing methods such as vacuum induction melting in the 1950s greatly increased the temperature capability of turbine blades. Modern turbine blades often use nickel-based superalloys that incorporate chromium, cobalt, and rhenium.

Steam turbine blades are not exposed to such high temperatures, but they must withstand an operation with two-phase fluid. High content of water droplets can cause the rapid impingement and erosion of the blades which occurs when condensed water is blasted onto the blades. To prevent this, for example, condensate drains are installed in the steam piping leading to the turbine. Another challenge for engineers is the design of blades of the last stage of LP turbine. These blades must be (due to high specific volume of steam) very long, which induces enormous centrifugal forces during operation. Therefore, turbine blades are subjected to stress from centrifugal force (turbine stages can rotate at tens of thousands of revolutions per minute (RPM), but usually at 1800 RPM) and fluid forces that can cause fracture, yielding, or creep failures.

Turbine Blades – Root, Profile, Shroud

Turbine blades are usually divided into three parts:

  • Root. The root is a constructional feature of turbine blades, which fixes the blade into the turbine rotor.
  • Profile. The profile converts kinetic energy of steam into mechanical energy of the blade.
  • Shroud.  The shroud reduces the vibration of the blade which can be induced by the flowing of high pressure steam through the blades.

Losses in Steam Turbines

The steam turbine is not a perfect heat engine. Energy losses tend to decrease the efficiency and work output of a turbine. This inefficiency can be attributed to the following causes.

  • Residual Velocity Loss. The velocity of the steam that leaves the turbine must have certain absolute value (vex). The energy loss due to absolute exit velocity of steam is proportional to (vex2/2). This type of loss can be reduced by using multistage turbine.
  • Presence of Friction. In real thermodynamic systems or in real heat engines, a part of the overall cycle inefficiency is due to the frictional losses by the individual components (e.g. nozzles or turbine blades)
  • Steam Leakage. The turbine rotor and the casing cannot be perfectly insulated. Some amount of steam leaks from the chamber without doing useful work.
  • Loss Due to Mechanical Friction in Bearings. Each turbine rotor is mounted on two bearings, i.e. there are double bearings between each turbine module.
  • Pressure Losses in Regulating Valves and Steam Lines. There are the main steam line isolation valves (MSIVs), the throttle-stop valves and control valves between steam generators and main turbine. Like pipe friction, the minor losses are roughly proportional to the square of the flow rate. The flow rate in the main steam lines is usually very high. Although throttling is an isenthalpic process, the enthalpy drop available for work in the turbine is reduced, because this causes an increase in vapor quality of outlet steam.
  • Losses Due to Low Quality of Steam. The exhausted steam is at a pressure well below atmospheric and the steam is in a partially condensed state, typically of a quality near 90%. Higher content of water droplets can cause the rapid impingement and erosion of the blades which occurs when condensed water is blasted onto the blades.
  • Radiation Loss. Steam turbine may operate at steady state with inlet conditions of  6 MPa, t = 275.6°. Since it is a large and heavy machine, it must be thermally insulated to avoid any heat loss to the surroundings.

Governing of Steam Turbine

Governing of steam turbine is the procedure of controlling the flow rate of steam to a steam turbine so as to maintain the speed of the turbine fairly constant irrespective of load on the turbine. The typical main turbine in nuclear power plants, in which steam expands from pressures about 6 MPa to pressures about 0.008 MPa, operates at speeds about:

  • 3000 RPM for 50 Hz systems for 2-pole generator (or 1500RPM for 4-pole generator),
  • 1800 RPM for 60 Hz systems for 4-pole generator (or 3600 RPM for 2-pole generator).

The variation in load (power output) during the operation of a steam turbine can have a significant impact on its performance and its efficiency. Traditionally, nuclear power plants (NPPs) have been considered as baseload sources of electricity as they rely on a technology with high fixed costs and low variable costs.  However, this simple state of affairs no longer applies in all countries. The share of nuclear power in the national electricity mix of some countries has become so large that the utilities have had to implement or to improve the manoeuvrability capabilities of their power plants in order to be able to adapt electricity supply to daily, seasonal or other variations in power demand. For example, this is the case in France where more than 75% of electricity is generated by NPPs, and where some nuclear reactors operate in load-following mode.

The primary objective in the steam turbine operation is to maintain a constant speed of rotation irrespective of the varying load. This can be achieved by means of governing in a steam turbine. The principal methods of governing which are used in steam turbines are:

  1. Nozzle Governing
    Nozzle Governing. Source: wikipedia.org License: CC BY-SA 3.0

    Throttle governing. The main parts of a simple throttle governing system are the throttle-stop valves and especially control valves between steam generators and main turbine. The primary aim of control valves is to reduce the steam flow rate. Incidental to reducing the mass rate of flow, the steam experiences an increasing pressure drop across the control valve, which is in fact an isenthalpic process. Although throttling is an isenthalpic process, the enthalpy drop available for work in the turbine is reduced, because this causes an increase in vapor quality of outlet steam.

  2. Nozzle governing. In the nozzle control governing, the steam supply from the main valve is divided into two, three, or more lines. The flow rate of steam is regulated by opening and shutting of sets of nozzles rather than regulating its pressure.
  3. Bypass governing. This is generally used for the overload valve which passes the steam directly into the latter stages of steam turbine. During such operation, bypass valves are opened and live steam is introduced into the later stages of the turbine. This generates more energy to satisfy the increased load.
  4. Combination of 2 and 3.

Turbine Trip

Every steam turbine is also provided with emergency governors which come into action under specific conditions. In general, an unplanned or emergency shutdown of a turbine is known as a “turbine trip”.  The turbine trip signal initiates fast closure of all steam inlet valves  (e.g. turbine stop valves – TSVs) to block steam flow through the turbine.

The turbine trip event is a standard postulated transient, which must be analyzed in the Safety Analysis Report (SAR) for nuclear power plants.

In a turbine trip event, a malfunction of a turbine or reactor system causes the turbine to trip off the line by abruptly stopping steam flow to the turbine. The common causes for a turbine trip are for example:

  • the speed of the turbine shaft increases beyond specific value (e.g. 110%) – turbine overspeed
  • balancing of the turbine is disturbed or due to high vibrations
  • failure of the lubrication system
  • low vacuum in the condenser
  • manual emergency turbine trip

Following a turbine trip, the reactor is usually tripped directly from a signal derived from the system. On the other hand, the reactor protection system initiates a turbine trip signal whenever reactor trip occurs. Since there remains still energy in the nuclear steam supply system (NSSS), the automatic turbine bypass system will accommodate the excess steam generation.

Principle of Operation of Turbine Generator – Electricity Generation

Most of nuclear power plants operates a single-shaft turbine-generator that consists of one multi-stage HP turbine and three parallel multi-stage LP turbines, a main generator and an exciter.  HP Turbine is usually double-flow impulse turbine (or reaction type) with about 10 stages with shrouded blades and produces about 30-40% of the gross power output of the power plant unit. LP turbines are usually double-flow reaction turbines with about 5-8 stages (with shrouded blades and with free-standing blades of last 3 stages). LP turbines produce approximately 60-70% of the gross power output of the power plant unit. Each turbine rotor is mounted on two bearings, i.e. there are double bearings between each turbine module.

Steam turbine of typical 3000MWth PWR
Schema of a steam turbine of a typical 3000MWth PWR.

From Steam Generator to Main Steam Lines – Evaporation

Steam Generator - vertical
Steam Generator – vertical

The power conversion system of typical PWR begins in the steam generators in their shell sides. Steam generators are heat exchangers used to convert feedwater into steam from heat produced in a nuclear reactor core. The feedwater (secondary circuit) is heated from ~230°C 500°F (preheated fluid by regenerators) to the boiling point of that fluid (280°C; 536°F; 6,5MPa). Heat is transferred through the walls of these tubes to the lower pressure secondary coolant located on the secondary side of the exchanger where the coolant evaporates to pressurized steam (saturated steam 280°C; 536°F; 6,5 MPa). The saturated steam leaves the steam generator through a steam outlet and continues to the main steam lines and further to the steam turbine.

Steam Generator to Main Steam LinesThese main steam lines are cross-tied (e.g. via steam collector pipe) near the turbine to ensure that the pressure difference between any of the steam generators does not exceed specific value thus maintaining system balance and ensuring uniform heat removal from the Reactor Coolant System (RCS). The steam flows through the main steam line isolation valves (MSIVs), which are very important from safety point of view, to the high pressure turbine. Directly at the inlet of the steam turbine, there are throttle-stop valves and control valves. Turbine control is achieved by varying these turbine valves openings. In the event of a turbine trip, the steam supply must be isolated very quickly, usually in the fraction of a second, so the stop valves must operate quickly and reliably.


Evaporation of water at high pressure - Energy balance in a steam generator
Steam Generator - vertical
Steam Generator – vertical

Calculate the amount of primary coolant, which is required to evaporate 1 kg of feedwater in a typical steam generator. Assume that there are no energy losses, this is only idealized example.

Balance of the primary circuit

The hot primary coolant (water 330°C; 626°F; 16MPa) is pumped into the steam generator through primary inlet. The primary coolant leaves (water 295°C; 563°F; 16MPa) the steam generator through primary outlet.

hI, inlet = 1516 kJ/kg

=> ΔhI = -206 kJ/kg

hI, outlet = 1310 kJ/kg

Balance of the feedwater

Steam generator - counterflow heat exchanger
Temperature gradients in typical PWR steam generator.

The feedwater (water 230°C; 446°F; 6,5MPa) is pumped into the steam generator through the feedwater inlet. The feedwater (secondary circuit) is heated from ~230°C 446°F to the boiling point of that fluid (280°C; 536°F; 6,5MPa). Feedwater is then evaporated and the pressurized steam (saturated steam 280°C; 536°F; 6,5 MPa) leaves the steam generator through steam outlet and continues to the steam turbine.

hII, inlet = 991 kJ/kg

=> ΔhII = 1789 kJ/kg

hII, outlet = 2780 kJ/kg

Balance of the steam generator

Since the difference in specific enthalpies is less for primary coolant than for feedwater, it is obvious that the amount of primary coolant will be higher than 1kg. To produce of 1 kg of saturated steam from feedwater, about 1789/206 x 1 kg =  8.68 kg of primary coolant is required.

Isobaric Heat Addition
Rankine Cycle - Ts Diagram
Rankine Cycle – Ts Diagram

Isobaric heat addition (in a heat exchanger – boiler) – In this phase (between state 2 and state 3) there is a constant-pressure heat transfer to the liquid condensate from an external source, since the chamber is open to flow in and out.  The feedwater (secondary circuit) is heated from to the boiling point (2 → 3a) of that fluid and then evaporated in the boiler (3a → 3). The net heat added is given by Qadd = H3 – H2

From Turbine Valves to Condenser – Expansion

Rankine Cycle - Ts diagram
Rankine cycle – Ts diagram

Typically most of nuclear power plants operates multi-stage condensing steam turbines. In these turbines the high-pressure stage receives steam (this steam is nearly saturated steam – x = 0.995 – point C at the figure; 6 MPa; 275.6°C) from a steam generator and exhaust it to moisture separator-reheater (MSR – point D). The steam must be reheated in order to avoid damages that could be caused to blades of steam turbine by low quality steam. High content of water droplets can cause the rapid impingement and erosion of the blades which occurs when condensed water is blasted onto the blades. To prevent this, condensate drains are installed in the steam piping leading to the turbine.

Source: TVO – Olkiluoto 3 NPP www.tvo.fi/uploads/julkaisut/tiedostot/ydinvoimalayks_OL3_ENG.pdf
Source: TVO – Olkiluoto 3 NPP www.tvo.fi/uploads/julkaisut/tiedostot/ydinvoimalayks_OL3_ENG.pdf

The moisture-free steam is superheated by extraction steam from the high-pressure stage of turbine and by steam directly from the main steam lines. The heating steam is condensed in the tubes and is drained to the feedwater system.

The reheater heats the steam (point D) and then the steam is directed to the low-pressure stage of steam turbine, where expands (point E to F). The exhausted steam then condenses in the condenser and it is at a pressure well below atmospheric (absolute pressure of 0.008 MPa), and is in a partially condensed state (point F), typically of a quality near 90%. High pressure and low pressure stages of the turbine are usually on the same shaft to drive a common generator, but they have separate cases. The main generator produces electrical power, which is supplied to the electrical grid.

Wet Steam Turbine - Expansion


Expansion in the high-pressure stage of the steam turbine
A high-pressure stage of steam turbine operates at steady state with inlet conditions of  6 MPa, t = 275.6°C, x = 1 (point C). Steam leaves this stage of turbine at a pressure of 1.15 MPa, 186°C and x = 0.87 (point D). Calculate the enthalpy difference (the work done by HP Turbine) between these two states.

The enthalpy for the state C can be picked directly from steam tables, whereas the enthalpy for the state D must be calculated using vapor quality:

h1, wet = 2785 kJ/kg

h2, wet = h2,s x + (1 – x ) h2,l  = 2782 . 0.87 + (1 – 0.87) . 790 = 2420 + 103 = 2523 kJ/kg

Δh = 262 kJ/kg = WHP

Isentropic Expansion
Rankine Cycle - Ts Diagram
Rankine Cycle – Ts Diagram

Isentropic expansion (expansion in a steam turbine) – Steam from the boiler expands adiabatically from state 3 to state 4 in a steam turbine to produce work and then is discharged to the condenser (partially condensed). The steam does work on the surroundings (blades of the turbine) and loses an amount of enthalpy equal to the work that leaves the system. The work done by turbine is given by WT = H4 – H3. Again the entropy remains unchanged.

From Condenser to Condensate Pumps – Condensation

Condenser - LP Heaters - DeaeratorThe main condenser condenses the exhaust steam from the low-pressure stages of the main turbine and also from the steam dump system. The exhausted steam is condensed by passing over tubes containing water from the cooling system.

The pressure inside condenser is given by the ambient air temperature (i.e. temperature of water in the cooling system) and by steam ejectors or vacuum pumps, which pull the gases (non-condensibles) from the surface condenser and eject them to the atmosphere.

The lowest feasible condenser pressure is the saturation pressure corresponding to the ambient temperature (e.g. absolute pressure of 0.008 MPa, which corresponds to 41.5°C). Note that, there is always a temperature difference between (around ΔT = 14°C) the condenser temperature and the ambient temperature, which originates from finite size and efficiency of condensers. Since neither the condenser is 100% efficient heat exchanger, there is always a temperature difference between the saturation temperature (secondary side) and the temperature of the coolant in the cooling system. Moreover, there is a design inefficiciency, which decreases the overall efficiency of the turbine. Ideally the steam exhausted into the condenser would have no subcooling. But real condensers are designed to subcool the liquid by a few degrees of Celsius in order to avoid the suction cavitation in the condensate pumps. But, this subcooling increases the inefficiency of the cycle, because more energy is needed to reheat the water.

Rankine Cycle - condenser pressure
Decreasing the turbine exhaust pressure increases the net work per cycle but also decreses the vapor quality of outlet steam.

The goal of maintaining the lowest practical turbine exhaust pressure is a primary reason for including the condenser in a thermal power plant. The condenser provides a vacuum that maximizes the energy extracted from the steam, resulting in a significant increase in net work and thermal efficiency. But also this parameter (condenser pressure) has its engineering limits:

  • Decreasing the turbine exhaust pressure decreases the vapor quality (or dryness fraction). At some point the expansion must be ended to avoid damages that could be caused to blades of steam turbine by low quality steam.
  • Decreasing the turbine exhaust pressure significantly increases the specific volume of exhausted steam, which requires huge blades in last rows of low-pressure stage of the steam turbine.

In a typical wet steam turbine, the exhausted steam condenses in the condenser and it is at a pressure well below atmospheric (absolute pressure of 0.008 MPa, which corresponds to 41.5°C). This steam is in a partially condensed state (point F), typically of a quality near 90%. Note that, the pressure inside the condenser is also dependent on the ambient atmospheric conditions:

  • air temperature, pressure and humidity in case of cooling into the atmosphere
  • water temperature and the flow rate in case of cooling into a river or sea

An increase in the ambient temperature causes a proportional increase in pressure of exhausted steam (ΔT = 14°C is usually a constant) hence the thermal efficiency of the power conversion system decreases. In other words, the electrical output of a power plant may vary with ambient conditions, while the thermal power remains constant.

The condensed steam (now called condensate) is collected in the condenser’s hotwell. Condenser’s hotwell provides also a water storage capacity, which is required for operational purposes such as feedwater makeup. The condensate (saturated or slightly subcooled liquid) is delivered to the condensate pump and then pumped by condensate pumps to the deaerator through feedwater heating system. The condensate pumps increase the pressure usually to about p = 1-2 MPa. There are usually four one-third-capacity centrifugal condensate pumps with common suction and discharge headers. Three pumps are normally in operation with one in the backup.


Isobaric Heat Rejection
Isobaric heat rejection (in a heat exchanger) – In this phase the cycle completes by a constant-pressure process in which heat is rejected from the partially condensed steam. There is heat transfer from the vapor to cooling water flowing in a cooling circuit. The vapor condenses and the temperature of the cooling water increases. The net heat rejected is given by Qre = H4 – H1

From Condensate Pumps to Feedwater Pumps – Heat Regeneration

Condenser - LP Heaters - DeaeratorThe condensate from condensate pumps then passes through several stages of low pressure feedwater heaters, in which the temperature of the condensate is increased by heat transfer from steam extracted from the low pressure turbines. There are usually three or four stages of low pressure feedwater heaters connected in the cascade. The condensate exits the low pressure feedwater heaters at approximately p = 1 MPa, t = 150°C and enters the deaerator. The main condensate system also contains a mechanical condensate purification system for removing impurities. The feedwater heaters are self-regulating. It means that the greater the flow of feedwater the greater the rate of heat absorption from the steam and the greater the flow of extraction steam.

There are non-return valves in the extraction steam lines between the feedwater heaters and turbine. These non-return valves prevent the reverse steam or water flow in case of turbine trip, which causes rapid decrease in the pressure inside the turbine. Any water entering the turbine in this way could cause severe damage to the turbine blading.


Heat Regeneration
The process of heat regeneration significantly increases the thermal efficiency of steam turbine by reducing the amount of fuel that must be added in the boiler. This process is known as heat regeneration and a variety of heat regenerators can be used for this purpose. Sometimes engineers use the term economiser that are heat exchangers intended to reduce energy consumption, especially in case of preheating of a fluid. On the other hand, the process of draining steam from the turbine at certain point of its expansion and using this steam for heating the feedwater supplied to the boiler is known as bleeding and it must be noted, a small amount of work, WT, is lost by the turbine.

As can be seen in the article “Steam Generator”, the feedwater (secondary circuit) at the inlet of the steam generator may have about ~230°C (446°F) and then is heated to the boiling point of that fluid (280°C; 536°F; 6,5MPa) and evaporated. But the condensate at the condenser outlet may have about 40°C, so the heat regeneration in typical PWR is significant and very important:

  • Heat regeneration increases the thermal efficiency, since more of the heat flow into the cycle occurs at higher temperature.
  • Heat regeneration causes a decrease in the mass flow rate especially through low-pressure stages of the steam turbine, hence the LP Isentropic Turbine Efficiency increases. Note that at the last stage of expansion the steam has very high specific volume, which requires large blades of the last stage.
  • Heat regeneration causes an increases in working steam quality, since the drains are situated at the periphery of turbine casing, where is higher concentration of water droplets. Improved turbine drainage implies less problems with erosion of blades.

Deaerator

Deaerator
A schematic diagram of a typical tray-type deaerator. Source: wikipedia.org License: CC BY-SA 3.0

In general, a deaerator is a device that is used for the removal of oxygen and other dissolved gases from the feedwater to steam generators. The deaerator is part of the feedwater heating system. It is usually situated between the last low pressure heater and feedwater booster pumps. In particular, dissolved oxygen in the steam generator can cause serious corrosion damage by attaching to the walls of metal piping and other metallic equipment and forming oxides (rust). Furthermore, dissolved carbon dioxide combines with water to form carbonic acid that causes further corrosion.

In the deaerator, the condensate is heated to saturated conditions usually by the steam extracted from the steam turbine. The extraction steam are mixed in the deaerator by a system of spray nozzles and cascading trays between which the steam percolates. Any dissolved gases in the condensate are released in this process and removed from the deaerator by venting to the atmosphere or to the main condenser. Directly below the deaerator is the feedwater storage tank, in which a large quantity of feedwater is stored at near saturation conditions. In the turbine trip event, this feedwater can be supplied to steam generators to maintain the required water inventory during transient. The deaerator and the storage tank is usually located at a high elevation in the turbine hall to ensure an adequate net positive suction head (NPSH) at the inlet to the feedwater pumps. NPSH is used to measure how close a fluid is to saturated conditions. Lowering the pressure at the suction side can induce cavitation. This arrangement minimizes the risk of cavitation in the pump.

From Feedwater Pumps to Steam Generator

Feedwater Pumps - HP HeatersThe system of feedwater pumps usually contains of three parallel lines (3×50%) of feedwater pumps with common suction and discharge headers. Each feedwater pump consist of the booster and the main feedwater pump. The feedwater pumps (usually driven by steam turbines) increase the pressure of the condensate (~1MPa) to the pressure in the steam generator (~6.5MPa).

The booster pumps provide the required main feedwater pump suction pressure. These pumps (both feedwater pumps) are normally high pressure pumps (usually of the centrifugal pump type) that take suction from the deaerator water storage tank, which is mounted directly below the deaerator, and supply the main feedwater pumps. The water discharge from the feedwater pumps flows through the high pressure feedwater heaters, enters the containment and then flows into the steam generators.

Feedwater flow to each steam generator is controlled by feedwater regulating valves (FRVs) in each feedwater line. The regulator is controlled automatically by steam generator level, steam flow and feedwater flow.

The high pressure feedwater heaters are heated by extraction steam from the high pressure turbine, HP Turbine. Drains from the high-pressure feedwater heaters are usually routed to the deaerator.

Steam Generator - vertical
Steam Generator – vertical

The feedwater (water 230°C; 446°F; 6,5MPa) is pumped into the steam generator through the feedwater inlet. In the steam generator is the feedwater (secondary circuit) heated from ~230°C 446°F to the boiling point of that fluid (280°C; 536°F; 6,5MPa). Feedwater is then evaporated and the pressurized steam (saturated steam 280°C; 536°F; 6,5 MPa) leaves the steam generator through steam outlet and continues to the steam turbine, thereby completing the cycle.


Isentropic Compression
Isentropic compression (compression in centrifugal pumps) – The liquid condensate is compressed adiabatically from state 1 to state 2 by centrifugal pumps (usually by condensate pumps and then by feedwater pumps). The liquid condensate is pumped from the condenser into the higher pressure boiler. In this process, the surroundings do work on the fluid, increasing its enthalpy (h = u+pv) and compressing it (increasing its pressure). On the other hand the entropy remains unchanged. The work required for the compressor is given by WPumps = H2 – H1.

References:
Reactor Physics and Thermal Hydraulics:
  1. J. R. Lamarsh, Introduction to Nuclear Reactor Theory, 2nd ed., Addison-Wesley, Reading, MA (1983).
  2. J. R. Lamarsh, A. J. Baratta, Introduction to Nuclear Engineering, 3d ed., Prentice-Hall, 2001, ISBN: 0-201-82498-1.
  3. W. M. Stacey, Nuclear Reactor Physics, John Wiley & Sons, 2001, ISBN: 0- 471-39127-1.
  4. Glasstone, Sesonske. Nuclear Reactor Engineering: Reactor Systems Engineering, Springer; 4th edition, 1994, ISBN: 978-0412985317
  5. Todreas Neil E., Kazimi Mujid S. Nuclear Systems Volume I: Thermal Hydraulic Fundamentals, Second Edition. CRC Press; 2 edition, 2012, ISBN: 978-0415802871
  6. Zohuri B., McDaniel P. Thermodynamics in Nuclear Power Plant Systems. Springer; 2015, ISBN: 978-3-319-13419-2
  7. Moran Michal J., Shapiro Howard N. Fundamentals of Engineering Thermodynamics, Fifth Edition, John Wiley & Sons, 2006, ISBN: 978-0-470-03037-0
  8. Kleinstreuer C. Modern Fluid Dynamics. Springer, 2010, ISBN 978-1-4020-8670-0.
  9. U.S. Department of Energy, THERMODYNAMICS, HEAT TRANSFER, AND FLUID FLOW. DOE Fundamentals Handbook, Volume 1, 2 and 3. June 1992.
  10. U.S. NRC. NUREG-0800, Standard Review Plan for the Review of Safety Analysis Reports for Nuclear Power Plants: LWR Edition

See also:

Turbine Generator

We hope, this article, Steam Turbine – Description and Characteristics, helps you. If so, give us a like in the sidebar. Main purpose of this website is to help the public to learn some interesting and important information about thermal engineering.
